8 LED Board

Design > Adapter Boards

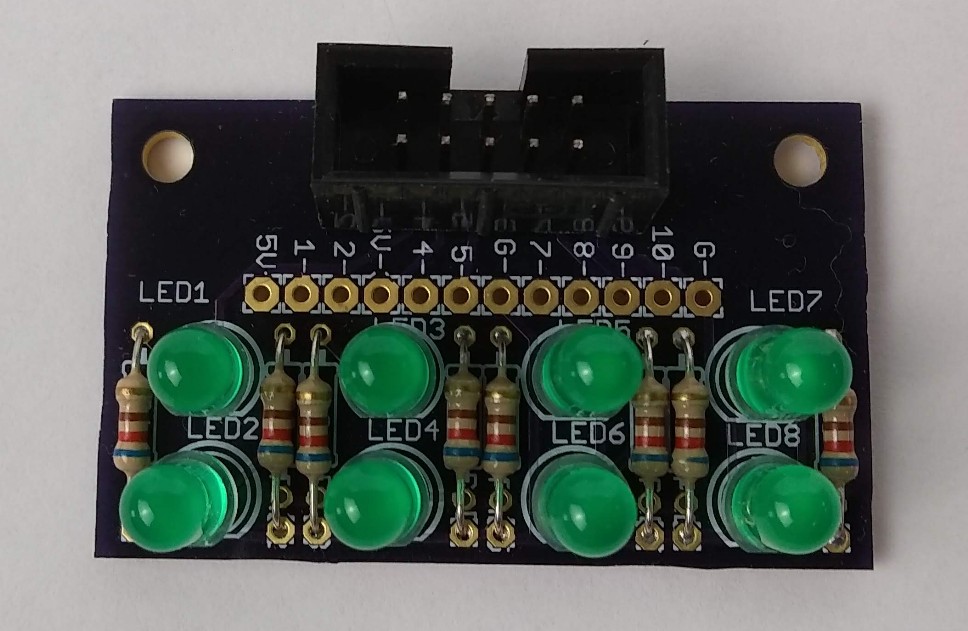

LED Adapter Board #1 (8 LED's)

This board can be helpful to become familiar with the development system.

See photo gallery HERE.

When attached to the Arduino Nano Adapter Board at position D the LEDs are connected to the digital pins A0 through A7 as follows.

LEDs 1, 3, 5 and 7 can be identified by the labels on the PCB. LED 2 is next to LED 1, etc.
